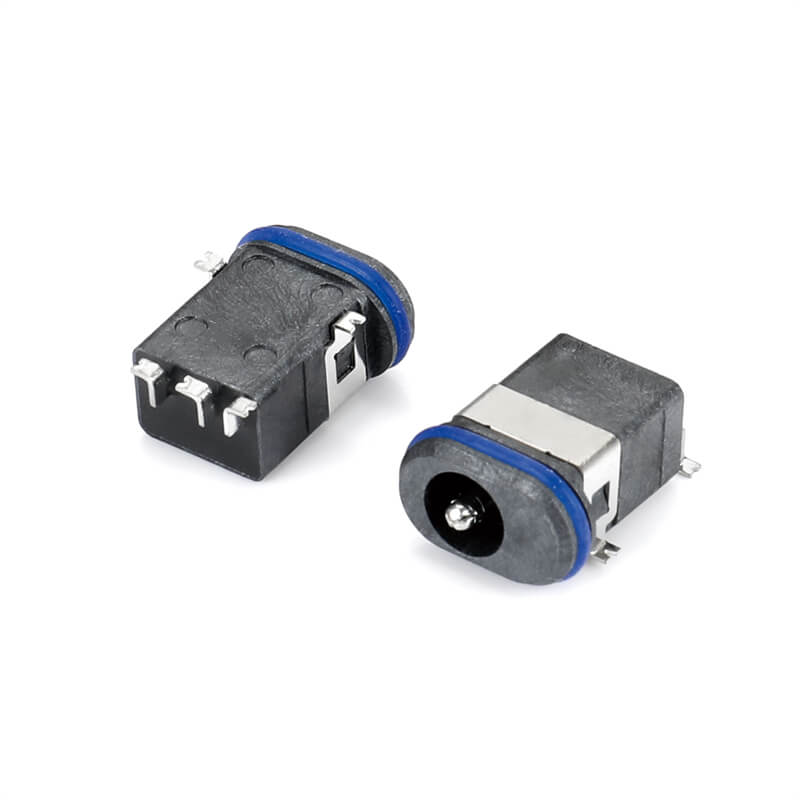

DC power sockets are commonly used power supply interfaces in modern electronic devices. They are widely applied in household appliances, communication equipment, and industrial systems. Based on different classification criteria, DC sockets can be categorized into various types to meet diverse application needs.
1. Types of DC Power Sockets
• By Shape:
Straight-in Type: The plug is inserted parallel to the socket, suitable for horizontally mounted equipment, providing a stable connection.
Side-in Type: The plug is inserted perpendicular to the socket, ideal for vertical installations and space-saving setups.
• By Number of Ports:
Single-Port Socket: Contains only one port, suitable for powering a single device. Simple in structure and easy to install.
Multi-Port Socket: Equipped with multiple ports, allowing simultaneous power supply to multiple devices for improved efficiency.
• By Voltage Level:
High-Voltage DC Socket: Designed for high-voltage environments, commonly used in industrial applications.
Low-Voltage DC Socket: Suitable for general low-voltage systems, widely used in consumer electronics.
2. Key Features of DC Power Sockets
Energy Efficient and Environmentally Friendly
DC sockets deliver direct current without the need for conversion from AC, reducing energy loss during the process and improving energy efficiency, which contributes to environmental sustainability.
Safe and Reliable
Operating on DC power, these sockets are less likely to generate electrical arcs or electromagnetic interference, significantly lowering the risks of fire and radiation, and enhancing overall safety.
Highly Adaptable
DC sockets offer flexible configurations and can be customized or expanded based on voltage, power, and port requirements, making them suitable for a wide range of scenarios and device types.
3. Proper Usage Instructions for DC Power Sockets
Check Product Labels Before Use
Ensure the socket's labeling is complete, including power type symbols, rated current values, voltage levels, and safety warnings to ensure safe operation.
Match the Power Appropriately
Use the socket only with devices that match its rated current. Avoid connecting high-power appliances to low-rated DC sockets to prevent overloading.
Keep Away from Water
DC sockets must not come into contact with water, as it may lead to internal short circuits or other electrical hazards.
Do Not Attempt Unauthorized Repairs
If the socket malfunctions, do not disassemble or attempt to repair it yourself. DC sockets have complex internal circuitry, and improper handling can lead to serious safety risks. Always consult a qualified technician or replace with a new unit if needed.
By understanding the types, features, and proper usage of DC power sockets, users can ensure safer and more efficient power supply for their electronic devices. Whether for industrial or everyday use, choosing and using the right DC socket is essential for reliable and safe operation.
