USB Type-C 24PIN Waterproof Female Connector — Product Technical White Paper
I. Product Overview
This product is an industrial-grade USB Type-C 24PIN waterproof female connector, designed with Surface Mount Technology (SMT) and integrated EMC (Electromagnetic Compatibility) shielding structure. It provides stable data transmission and power connection solutions for high-reliability electronic devices. Certified with IPX8 waterproof rating, this connector maintains exceptional performance in harsh environments. It is suitable for consumer electronics, industrial control, outdoor equipment, medical devices, and other applications requiring high protection levels.
II. Core Features
2.1 Industrial-Grade Waterproof Design

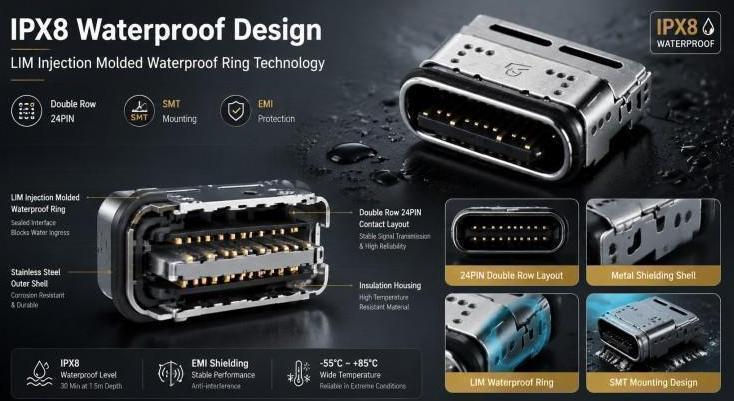

IPX8 Waterproof Rating: Utilizes LIM (Liquid Injection Molding) waterproof ring technology to achieve a sealed interface design. It can withstand continuous immersion at 1.5 meters depth for 30 minutes without water ingress, effectively blocking moisture penetration and ensuring reliable operation in humid or underwater environments.
Stainless Steel Shell: The housing is made of SUS304 stainless steel, offering excellent corrosion resistance and mechanical strength to extend product service life.
2.2 Precision Electrical Performance
24PIN Dual-Row Contact Layout: Standard Type-C dual-sided symmetrical design supports reversible plug-and-play, enhancing user convenience.
Gold-Plated Contacts: Contact terminals feature gold plating to ensure low contact resistance and long-term anti-oxidation performance.
Key Electrical Parameters:
Current Rating: 5.0A (VBUS Pin)
Contact Resistance: ≤30mΩ (VBUS & GND)
Dielectric Withstanding: ≥100Vrms AC
Insulation Resistance: ≥100MΩ
Durability: ≥10,000 Cycles

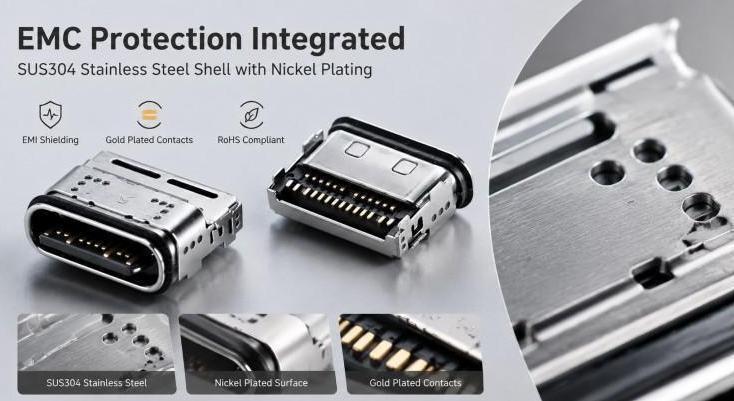

2.3 EMC Electromagnetic Compatibility Integration
Full metal shielding shell structure with nickel-plated surface treatment provides superior EMI shielding performance, effectively suppressing electromagnetic interference, ensuring stability and integrity of high-speed signal transmission, and meeting requirements for complex electromagnetic environments.
2.4 Wide Temperature Operating Capability
Operating Temperature Range: -55°C to +85°C
Manufactured with high-temperature resistant insulating materials to ensure stable mechanical and electrical performance under extreme temperature conditions.
III. Structural Design and Manufacturing

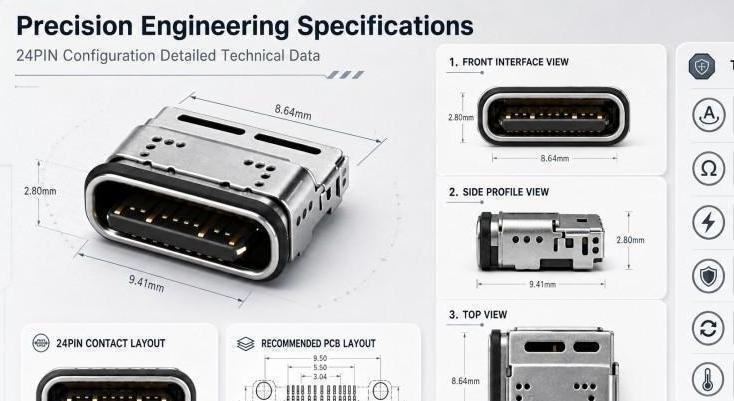

3.1 Mechanical Specifications
Interface Width: 8.64 mm
Interface Height: 2.80 mm
Overall Length: 9.41 mm
Tolerance: ±0.05 mm

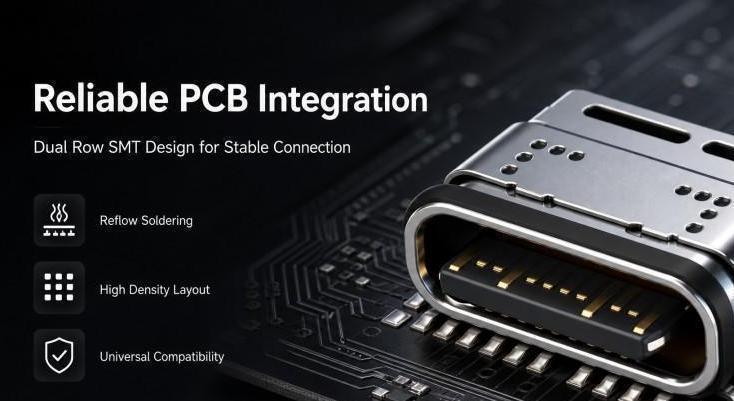

3.2 PCB Integration Solution
Dual-Row SMT Mounting Design: Optimized pad layout supporting high-density PCB integration.
Reflow Soldering Compatible: Compatible with standard reflow soldering processes, ensuring high yield and connection reliability in automated production.
Recommended PCB Pad Layout: Please refer to product technical drawings. Pad spacing and positioning hole designs are precisely calculated to ensure mounting accuracy and mechanical strength.
3.3 Materials and Environmental Compliance
Shell Material: SUS304 stainless steel with nickel plating
Contact Material: Copper alloy substrate with gold plating
Insulation Material: High-temperature engineering plastic, meeting flame retardant requirements
Environmental Standards: Fully compliant with RoHS Directive 2011/65/EU and REACH Regulation (EC) No 1907/2006, with no restricted hazardous substances exceeding limits.
IV. Application Scenarios
This product is suitable for the following fields:
Consumer Electronics: Smartphones, tablets, wearable devices, portable audio equipment
Industrial Control: Outdoor industrial terminals, automation equipment, instrumentation
Automotive Electronics: In-vehicle infotainment systems, charging interface modules
Medical Devices: Portable medical monitoring equipment, diagnostic instruments
Outdoor Equipment: Action cameras, two-way radios, GPS navigation devices
V. Packaging and Quality Certification

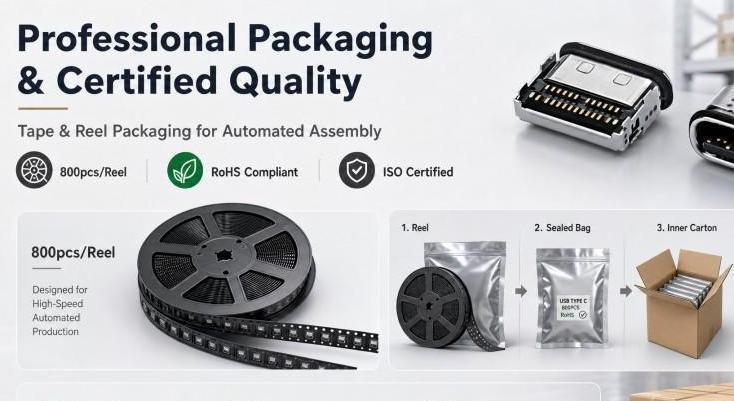

5.1 Professional Packaging Solution To meet modern automated production requirements, the product adopts standardized tape and reel packaging:
Reel: 800 pcs per reel, compatible with high-speed pick-and-place machines
Sealed Bag: Moisture-proof and anti-static sealed packaging
Inner Carton: Cushioning protection for convenient production line handling
Outer Carton: Standard logistics packaging with clear labeling
5.2 Quality Management System
ISO 9001 Certified: Full-process quality management system ensuring product consistency and reliability
RoHS Compliant: Compliant with EU Restriction of Hazardous Substances Directive
REACH Compliant: Compliant with EU Regulation on Registration, Evaluation, Authorization and Restriction of Chemicals
VI. Technical Parameter Summary
Product Type: USB Type-C 24PIN Waterproof Female Connector
Mounting Method: SMT Surface Mount
Waterproof Rating: IPX8 (1.5m / 30min)
Current Rating: 5.0A (VBUS)
Contact Resistance: ≤30mΩ
Insulation Resistance: ≥100MΩ
Dielectric Withstanding: 100Vrms AC min
Insertion/Withdrawal Cycles: 10,000
Operating Temperature: -55°C to +85°C
Shell Material: SUS304 Stainless Steel + Nickel Plating
Contact Material: Copper Alloy + Gold Plating
Packaging Specification: 800 pcs per reel
Environmental Certifications: RoHS / REACH / ISO 9001
VII. Conclusion
This USB Type-C 24PIN waterproof female connector combines precision engineering design, industrial-grade waterproof technology, and EMC electromagnetic compatibility solutions. While ensuring stable high-speed data transmission and power supply, it provides high-level environmental protection for electronic devices. The product has passed rigorous international quality certifications and adopts standardized packaging compatible with automated production processes, making it an ideal choice for those seeking high-reliability, long-life connection solutions.
For complete product specifications, PCB footprint drawings, or sample requests, please contact our technical support team.
