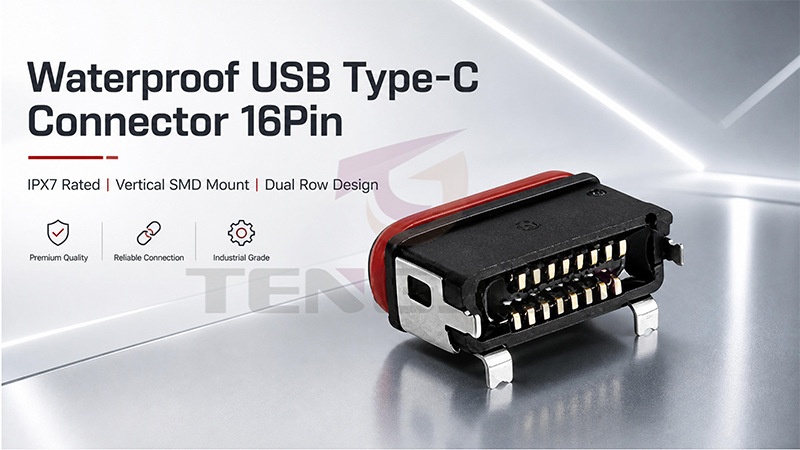

In applications such as smart wearables, medical devices, and outdoor electronics, waterproof performance and connection reliability have become critical factors when selecting connectors. Our Waterproof USB Type-C 16-Pin Connector is designed with an IPX7 waterproof rating and supports Vertical SMT mounting, delivering industrial-grade quality for reliable connectivity in demanding environments.
Key Advantages
1. IPX7 Waterproof Protection for Challenging Environments
1-Meter Water Immersion Protection
Certified to the IPX7 standard, the connector can withstand immersion in water up to 1 meter deep for 30 minutes without water ingress.
Red Silicone Sealing Ring
A precisely engineered silicone sealing structure creates a 360° waterproof barrier, effectively preventing moisture and dust from entering the connector.
Dual Protection Against Water and Dust
Ideal for outdoor applications, bathrooms, industrial facilities, and other humid or dusty environments.
2. 16-Pin Dual-Row Gold-Plated Contacts for Stable Signal Transmission
Dual-Row 16-Pin Design
Provides more functional pins within a compact footprint while supporting high-speed USB 3.1 data transmission.
Gold-Plated Contact Technology
The contact surfaces are gold-plated to offer excellent oxidation resistance, corrosion resistance, lower contact resistance, and extended mating life.
High Electrical Conductivity
Manufactured with premium copper alloy materials to ensure efficient high-current transmission with minimal heat generation.
3. Precision Engineering with Industrial-Grade Quality
● Connector Type: USB Type-C 16-Pin
● Mounting Method: Vertical SMT (Surface Mount Device)
● Housing Material: Copper alloy shell with semi-shielded design
● Overall Height: 6.85 mm (compact profile)
● Protection Rating: IPX7
● Environmental Compliance: RoHS Compliant and REACH Certified
Typical Applications
1. Smart Wearable Devices
Smartwatches, fitness bands, and other wearable electronics are frequently exposed to sweat and rain. The IPX7 waterproof connector ensures long-term charging and data transfer reliability.
2. Medical Equipment
Portable medical monitoring devices and health-tracking equipment require superior hygiene standards and waterproof performance. This connector is designed to meet demanding medical-grade reliability requirements.
3. Outdoor Electronic Devices
Suitable for outdoor lighting systems, action cameras, GPS trackers, and other devices that require stable charging and data transmission in rainy or snowy conditions.
4. Industrial Control Systems
Industrial automation equipment, outdoor sensors, and automotive electronics require connectors that can withstand vibration, temperature fluctuations, and moisture exposure.
Quality Assurance System
We maintain a comprehensive quality control process to ensure every connector meets industrial-grade standards:
Raw Material Inspection → Electrical Performance Testing → Thermal Cycling Testing → Final Visual Inspection
Certification Standards
RoHS Compliance
Restricts the use of hazardous substances and complies with European environmental regulations.
REACH Certification
Complies with regulations concerning the registration, evaluation, authorization, and restriction of chemicals.
Industrial-Grade Reliability
Designed and tested to meet the rigorous demands of industrial operating environments.
Customization Services
We offer flexible customization solutions to meet specific project requirements:
Structural Customization
Connector height, pin configurations, mounting methods, and other mechanical features can be tailored to customer specifications.
Performance Upgrades
Options include higher protection ratings such as IP68 and increased current-carrying capacity.
Fast Delivery
Our mature supply chain and manufacturing capabilities help reduce lead times and accelerate project schedules.
Technical Support
Professional engineering teams provide connector selection guidance and customized application solutions.
Conclusion
Combining IPX7 waterproof protection, 16-pin dual-row gold-plated contacts, and Vertical SMT mounting, our Waterproof USB Type-C 16-Pin Connector is an ideal connectivity solution for smart wearables, medical devices, outdoor electronics, and industrial control systems.
Built on precision engineering and rigorous quality assurance, we are committed to being your trusted connector manufacturing partner.
Contact us today to request free samples and professional technical support.
